Description

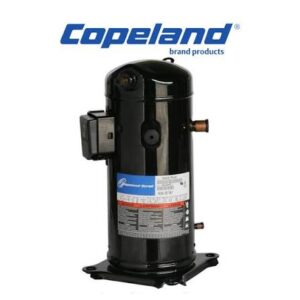

Refrigeration compressor ZR61KCE-TFD

Producer: Copeland
Line: ZR
Model: ZR61KCE-TFD
Cooling capacity [kW]: 7.43
Heat rejection [kW]: 10.72
Displacement [m³/h]: 14.3
Refrigerant: R22, R134a, R407C
Capacity control: None
Power supply: 400V/3Ph/50Hz

Data

Technical data

• Displacement [m³/h]: 14.3

• Oil charge [l]: 1.66

• Oil type: POE RL32-3MAF

• Internal free volume [dm³]: 4.1

• Net weight [kg]: 39.50

Electrical data and limits

• Power supply: 400V/3Ph/50Hz

• Maximum continuous current [A]: 11.0

• Locked rotor amperage [A]: 65.5

• Motor resistance main [Ω]: 2.75

• Maximum suction pressure [bar]: 20.0

• Maximum discharge pressure [bar]: 29.5

• Maximum suction temperature [°C]: 50.0

Dimensions

• Suction tube diameter [inch]: 7/8

• Discharge tube diameter [inch]: 1/2

• Length [mm]: 246

• Height [mm]: 451

• Width [mm]: 246

Other

• Approved refrigerants: R22, R134a, R407C

• Allowed oil types: POE RL32-3MAF, POE MOBIL EAL Arctic 22 CC

• Capacity control: None

• Protection rating: IP21 (IEC34)

Refrigeration compressor ZR61KCE-TFD

Performance

Nominal conditions: refrigerant: R22, evaporation: -10°C (dew point), condensation: 45°C (dew point), superheating: 10K, subcooling: 0°C
